- Live HD video camera streams real-time video.
- Real-time 2 way conversations from anywhere in the world.
-Infrared night vision let you see it through up to 15ft. distance at night.
- Hack-proof PIN Genie® digital touchscreen.
- Access with MIFARE RFID cards.
- 3D biometric fingerprint sensor access
- stores up to 99 fingerprints.
- Issue Offline Access Codes™ that do not require users to download an app or have WiFi or Internet connection
to use.
- Remote lock and unlock from anywhere using the Lockly app.
- Motion sensor sends real-time alerts to your smartphone or setup auto-records whenever motion is
detected.
- eKeys & eBadges -grant one-time use or specific time duration access by issuing codes, digital eKeys or
eBadges remotely via a mobile device.
- Real-time control and monitoring
- know your door open/closed status in real-time and alert you on your smart-phone.
- IPX4 rated for water protection.
- Voice control through Hey Google.
- Full control with smartphone and Locky\OSTM.
Included | Lux Vision Smart Lock Bolt Assembly Screws Strike Plate + Housing Laser cut keys X 5 MIFARE RFID Card x 3 AA Alkaline Batterie Vision Connect Hub Vision Door Sensor LAN Cable Quick Start Guide Installation & User Manual Doorbell Decal |
Function | Smart lock + video doorbell |
Backset | Adjustable 2 23/64 " or 2 3/4" (60mm or 70mm) |

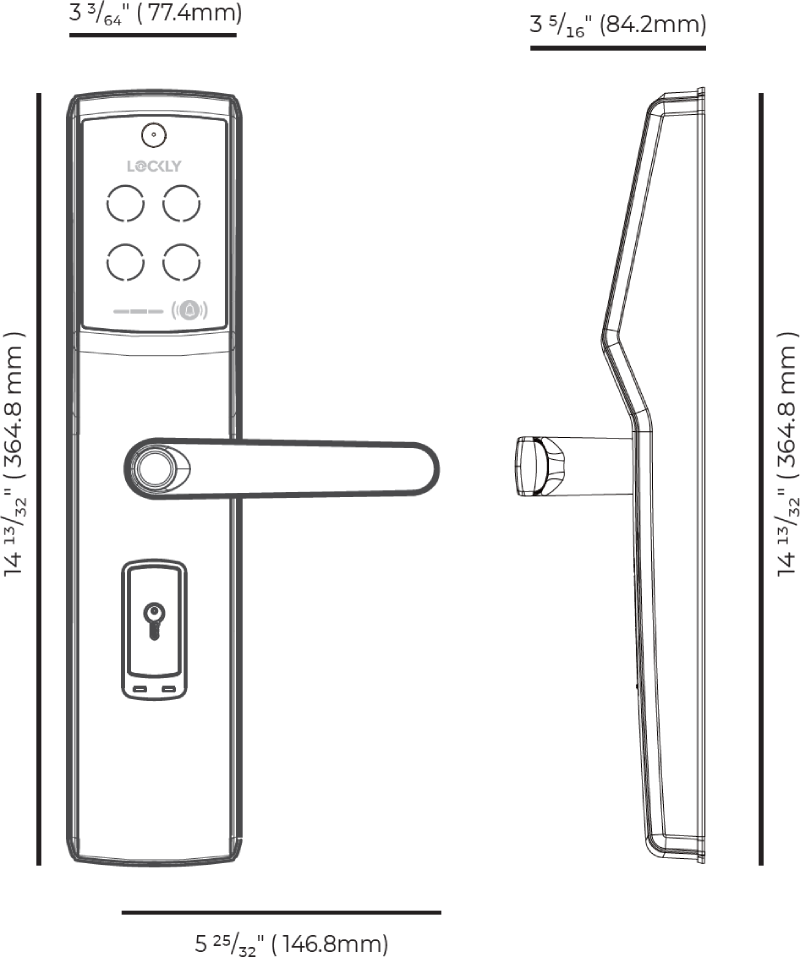

Dimensions(HxW) | 14 13/32" x 6 27/32" (364.8 mm x 174mm) including latch handle |
BOLT/LATCH | 3/4? (20mm) Deadbolt Throw (Stainless Steel) |
Working environment | 4 ~ 140°F (-20 ~ 60°C) |
Cam View | 120° |
Colour | Matte Black |
Requirements | Free Lockly app for iOS or Android Door Thickness 1 3/5? (40mm) - 4 3/4? ( 120mm ) Door Handing Reversible |
